Metal Lockers Eight Door

Code: M188DN

When creating runs of lockers, you can order lockers in Nest of 1, Nest of 2 or Nest of 3 to suit your layout. Nested lockers are joined together side by side in manufacture thus sharing common side panels. Locker nesting is more cost effective and offers easier handling and installation.

What is a nest?

Standard colours
Bitter Chocolate

Bitter Chocolate


Carmine Red

Carmine Red
Cornflower Blue

Cornflower Blue
Dark Grey

Dark Grey

Light Grey

Light Grey


Racing Green

Racing Green
Racing Green

Racing Green

Pastel colours - note pastel colours incurr a 5% surcharge
Candy Pink

Candy Pink
Light Violet

Light Violet
Sunburst Yellow

Sunburst Yellow


£150.64 +VAT

£180.77 inc VAT

Select Extras

Master Key
M Series Masterkey M Series Masterkey

M Series Masterkey

£15.00 ea
M Series Ronis Standard Camlock M Series Ronis Standard Camlock

Ronis standard camlocks for use on Link metal lockers come with 2 keys as standard and are fitted using a horseshoe clip fitting.  They are a none cost option when ordered with metal lockers and are factory fitted.  Replacements also available at additional cost.

M Series Ronis Standard Camlock

£0.00 ea
M Series Hasp & Staple Latch Lock M Series Hasp & Staple Latch Lock

Hasp & Staple Latch locks for use with padlocks to secure lockers (Padlocks not included but can be purchased as an accessory if required).  Oval handle with round cut out to take a 6mm padlock shaft.  Fitted as a no cost option when ordering lockers.  Replacements available.

M Series Hasp & Staple Latch Lock

£0.00 ea
M Series Ronis Coin Return lock M Series Ronis Coin Return lock

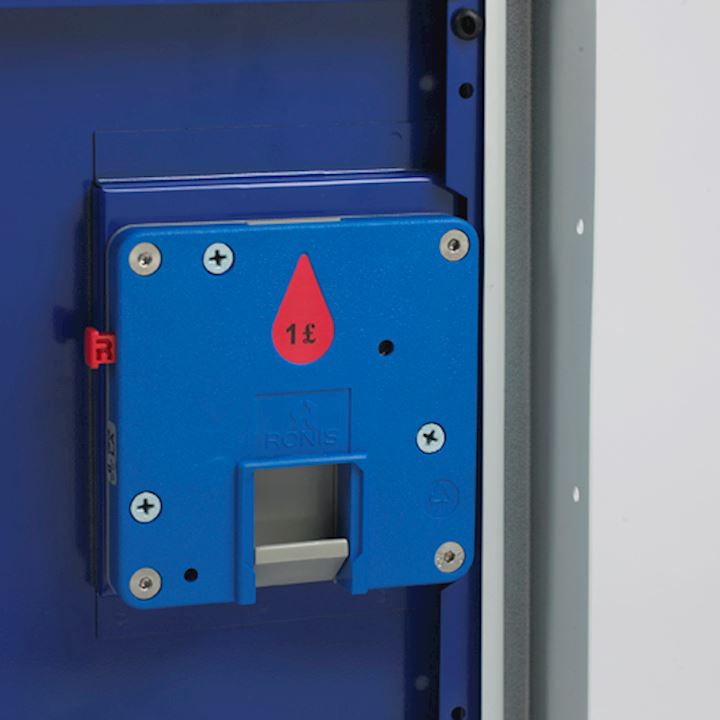

Coin return locks are a handy way to lock your lockers whilst ensuring that the key is always returned ready for the next user.  The key is kept captive until a £1 coin is inserted into the box at the rear of the locker.  When the key is returned and the door is opened the £1 coin is returned into the tray for the user to reclaim.  Factory fitted option when ordered with lockers.

M Series Ronis Coin Return lock

£24.34 ea
M Series Multi User Combination Lock M Series Multi User Combination Lock

The Four Digit Tumbler multi combination locks have 10,000 possible codes sequences.  Ideal for private or staff use.  Number can be changed after each opening to code of choice and scrambled on door closure. A masterkey override is available to reset locks should codes be lost.

M Series Multi User Combination Lock

£27.87 ea
M Series Digital Combination Lock M Series Digital Combination Lock

Digital combination lock can be seated vertically or horizontally.  No need for keys - users set their own combination number for full time use or for public use whereby code is erased once door is opened.  Supervisor overrride code to reset if code forgotten.  Factory fitted at time of ordering lockers. Masterkey override is not included and is available at checkout.

M Series Digital Combination Lock

£47.09 ea
  • High quality paint finish
  • Camlocks or Hasp & Staple locks
  • Air vent system at the top and bottom
  • FREE Delivery to most of the UK Mainland – Orders over £150
  • Delivery to Ground floor entrance OR Nearest off-loading point*
  • Delivery: 18 working days

Request Callback

If you are searching for metal lockers with small compartments to accommodate quite a number of people in a small area, than our eight door lockers in mild steel will be the ideal choice.  Suitable for workplace changing rooms in factories or hotel catering changing rooms, particularly where small items or garments need to be stored in an orderly and secure fashion.

These eight tier lockers can be provided with two functional lock options whichever is your preference. Standard cam locks with 2 keys included are most popular particularly as a master key is also available  These handy supervisor override master keys are essential if keys are accidentally lost or if someone doesn't turn up for the shift and access is required to the locker compartment.  Access can be gained to each locker compartment with one single key, quickly and efficiently without damage to the locker itself.  As an alternative to key locking, hasp and staple latch locks can be included at no extra charge.  These locks are designed to be used with padlocks and offer a practical and simple keyless solution.

Featuring a powder coated antibacterial paint finish to help prevent the spread of germs and a strong structure makes this eight compartment locker long lasting and durable.  We can offer a UK wide delivery and installation service.

Features of metal lockers:

  • Reinforced doors, spot welded at the corners to give enhanced strength
  • Welded vertical channel section stiffens the door for protection against impact damage
  • Complies with BS 4680
  • High quality durable paint finish
  • Interframe locking
  • Lock cover plate with recesses to accept compartment numbering and identification
  • Carcass ventilation at top and bottom
  • Over 2000 differs on standard locks
  • Anti-bacterial coating
  • UK manufactured
  • Pre-drilled for nesting on site
  • 3 sizes to order online: 300x300, 300x450, 450x450
  • Other sizes on request


  • Lockers can be purchased joined together in nest 1, 2 or 3 for further economy

Door Colours:

  • Available in any of the above colours
  • Multi-coloured door combinations available to your choice.  Either random or a set pattern.  Just tell us what you would like when ordering
  • Pastel Colour Codes: Candy Pink/BS02C33, Light Violet/BS381C797, Turquoise/RAL6034, Sunburst Yellow/BS10E50.
  • Please check the delivery tab for lead times.

Other colours are available on request:

  • Electric Blue, Black, Burgundy and Chocolate
  • Pastel Colours are available at additional cost.  Call our sales team for pricing.
  • Black carcass is available - contact us for more information and pricing
  • Longer lead time may apply

Standard Lock Options:

  • Camlock with 2 keys (over 2000 differs)
  • Hasp and staple latch lock (for use with own padlock)
  • Both these locks are included free of charge and can be selected at the basket
  • Supervisor masterkey override available at basket

Other Lock Options:

  • Multi-User Combination
  • Coin Return
  • Coin Retain
  • Radial Pin
  • Digital Combination
  • Can be added at basket or please call 01924 240291 for pricing

Other Accessories:

  • Sloping tops for prevention of litter accumulation
  • Locker stands to raise unit 150mm from floor
  • Ivorene number plates
  • Numbered key fobs
  • Nesting Bolts Available to add on at check out, please note 4 nesting bolts needed per side.
  • Contact our sales team for further details about locker accessories on 01924 240291

*Nearest off-loading point determined by driver. Driver not insured to carry up any stairs.Single driver Vehicle – Assistance will be required for off-loading of large orders.



It is recommended that lockers are properly installed as tipping could occur. Please refer to our locker installation guide or speak with a sales advisor.

Code Height Width Depth
M12218 1800mm 300mm 300mm
M12518 1800mm 300mm 450mm
M15518 1800mm 450mm 450mm
M12318 1800mm 300mm 380mm
M12618 1800mm 300mm 500mm
M13318 1800mm 380mm 380mm
M13518 1800mm 380mm 450mm
M13618 1800mm 380mm 500mm
M15618 1800mm 450mm 500mm

Locker Dimensions.

Height:  1800mm

Sizes:  300w x 300w

           300w x 450d

           450w x 450d


Other sizes available on request.  Please contact us for pricing.

Nominal Clear Entry Widths:

Locker width -64mm

305mm = clear entry 241mm

380mm = clear entry 316mm

460mm = clear entry 396mm

Overall width of 305mm locker Nest 1 is 305mm, likewise for 460mm

Overall width of 305mm locker Nest 2 = 610mm and Nest 3 = 915mm

Overall width of 460mm wide locker Nest 2 @ 920mm and Nest 3 @ 1380mm

Allow up to 2.5mm per locker for horizontal creep

Compartment Height: 195mm

The locking options below are availble to buy after adding the product above to your basket.

M Series Ronis Standard Camlock

M Series Ronis Standard Camlock

M Series Hasp & Staple Latch Lock

M Series Hasp & Staple Latch Lock

Hasp & Staple Latch locks for use with padlocks to secure lockers.  Oval handle with round cut out to take a 6mm padlock shaft.  Fitted as a no cost option when ordering lockers.  Replacements available at additioanal cost.

M Series Ronis Coin Return lock

M Series Ronis Coin Return lock

M Series Multi User Combination Lock

M Series Multi User Combination Lock

M Series Digital Combination Lock

M Series Digital Combination Lock

Battery run with 2 AA batteries

Over 15,000 openings

Public and Private use settings


The accessories below are availble to buy after adding the product above to your basket.

M Series Masterkey

M Series Masterkey

Masterkey override for M sereis standard metal lockers.

L&F camlocks 95/97series

M Series Number Plate

M Series Number Plate

  • Size 35mm long x 18mm high
  • Fits neatly into M sereis plastic escutcheon plate around lock
  • Rigid plastic with self adhesive backng
M Series Numbered Key Rings

M Series Numbered Key Rings

  • Numbered key rings to match numbering system on locker doors
  • Round discs printed with upto 4 digits long
  • Split pin ring
Padlock 3 scroll combination

Padlock 3 scroll combination

M Series Nesting Bolts Pack of 25

M Series Nesting Bolts Pack of 25

Nesting Bolts to suit an M Series locker, please allow 4 nesting bolts per side

Please click on the PDF icon below to download the specification for this item.

Download Internal Dimensions


Standard Delivery (UK Mainland only)
Estimated delivery is 18 working days. Mon - Fri 8.30am to 5.00pm.

Standard Delivery Cost (UK Mainland)
FREE DELIVERY on orders over £150.00+vat. A £15.00+vat carriage charge will be applied if the order value falls under this amount.

Free delivery on this product is exempt from all Scottish postcodes, Truro, Belfast and all islands. Please call for pricing.

Standard Delivery (Non UK Mainland)
Delivery to extremities and offshore locations is available by arrangement and at an extra cost.

Delivery To Home Addresses: Sorry but we DO NOT deliver to home addresses at this time. If we deem a delivery is to a home address, we will automatically cancel and refund the order within 5 working days.

Larger orders: The delivery lead time for larger orders could be extended. Please call us on 01924 240291 for up to date delivery times.

Returns Policy: These lockers are manufactured to order. Once in the production stage they cannot be cancelled, returned or exchanged.

Off Loading: Delivery is to a ground floor point only. Driver assistance for offloading will be required for large deliveries.

See our full delivery and returns policy.


Installation Service
Our installation service is available on this product. Please call our friendly sales team on 01924 24291 for more up to date information.

* Subject to area, subject to order quantity.

The contraction of infection from equipment is a recognised risk in the healthcare sector, office and education establishments and public buildings. It is essential to take precautions to reduce the risk of bacterial cross contamination.

Here at 3D Lockers we can provide an effective solution to minimizing these risks. Our storage lockers have a unique anti-bacterial powder coating incorporated at the time of manufacture. BioCote antimicrobial technology offers constant protection against a wide range of bacteria including MRSA, E. coli, Salmonella, Listeria and Campylobacter.

Field tests have proven that storage equipment treated with BioCote powder coating benefit from a 94% reduction in bacteria on their surface, helping to create a cleaner and more hygienic working environment.

BioCote also helps stop the build up of ugly black mould, keeping their appearance for longer.

BioCote will not wear off or leak – it is long lasting and will retain its antimicrobial efficiency for the lifetime of a product!
